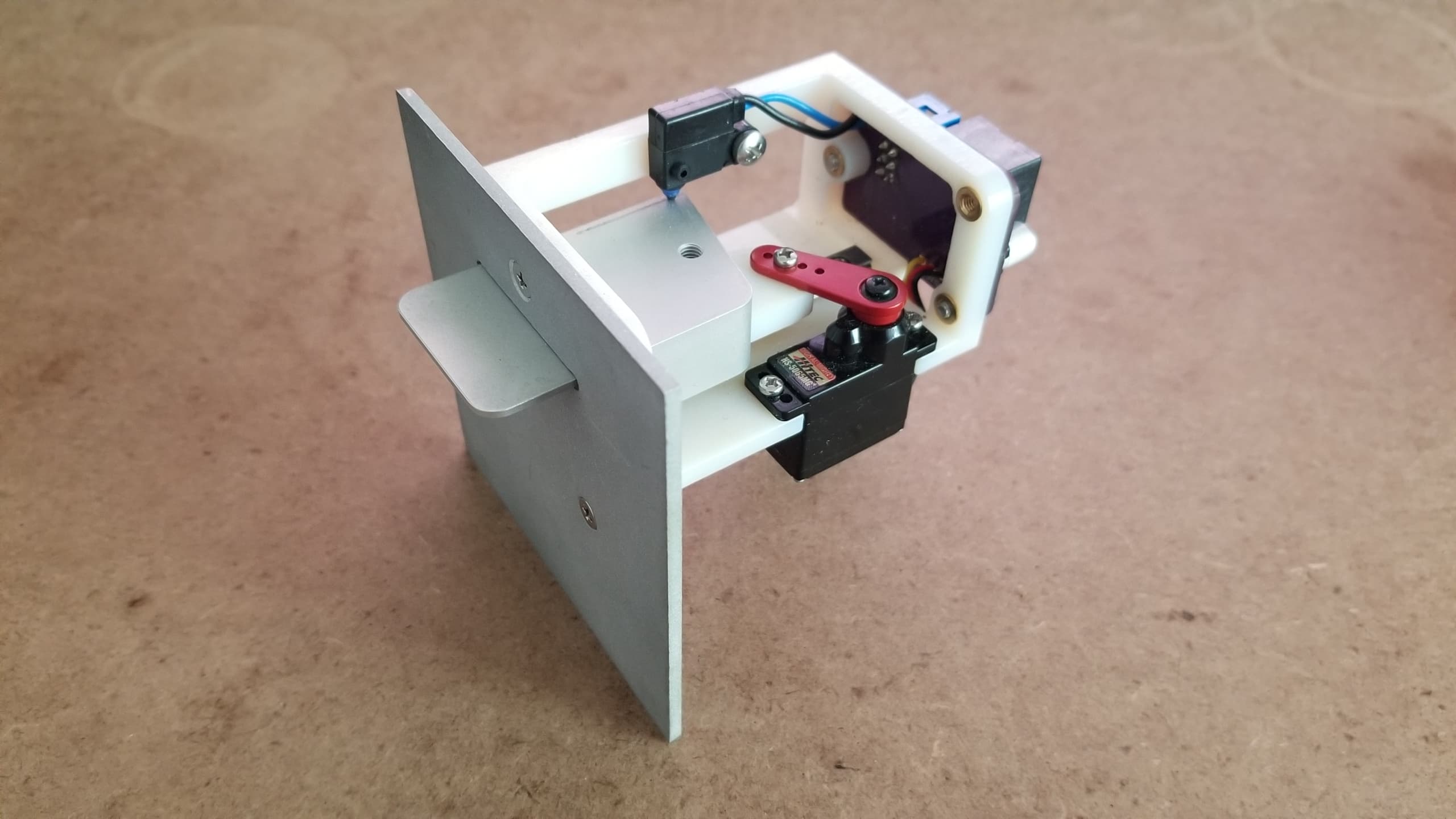

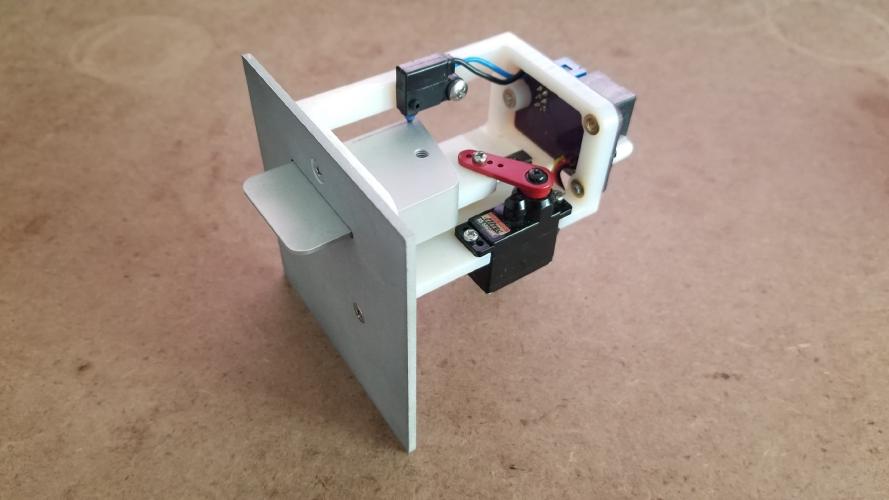

Retractable Lever

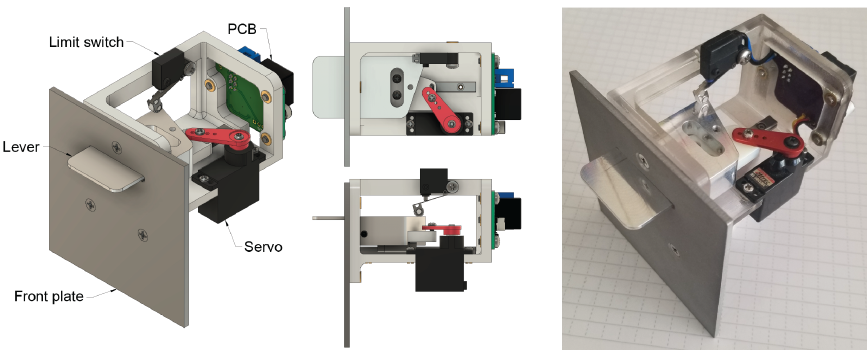

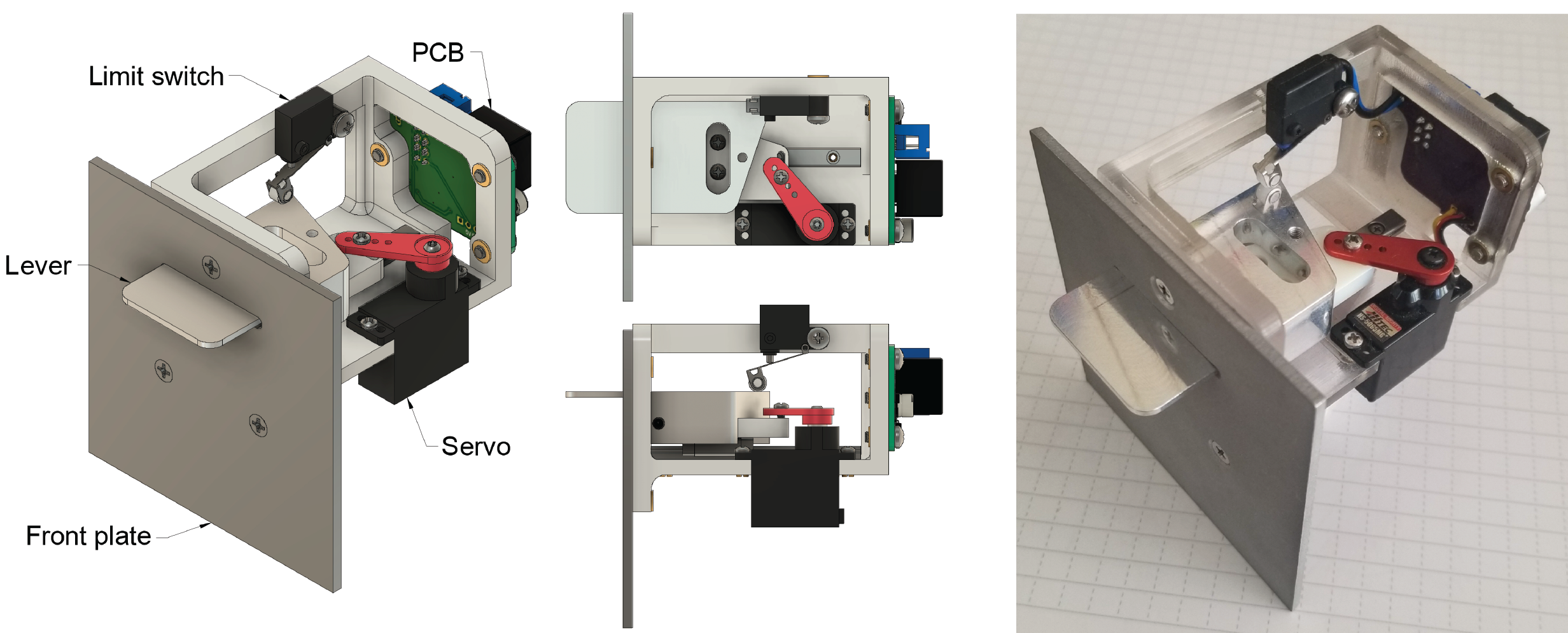

Design

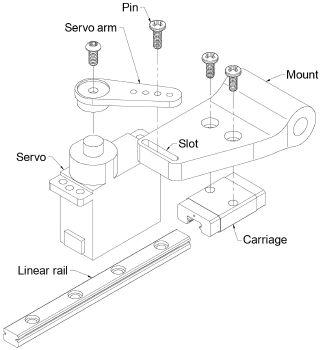

Exploded linear motion components

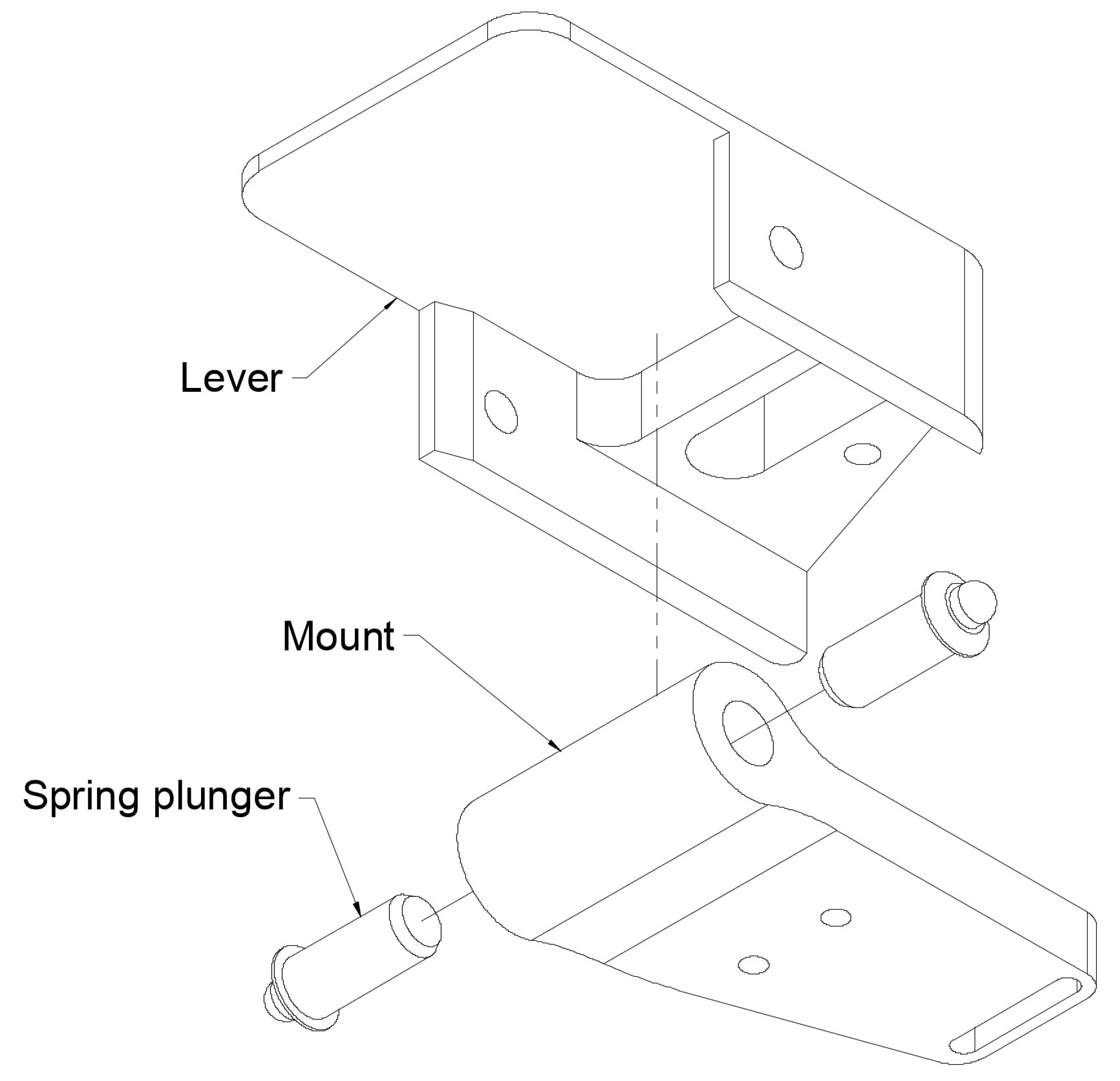

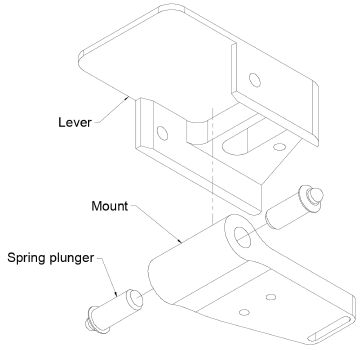

Lever secures to the mount with spring plungers

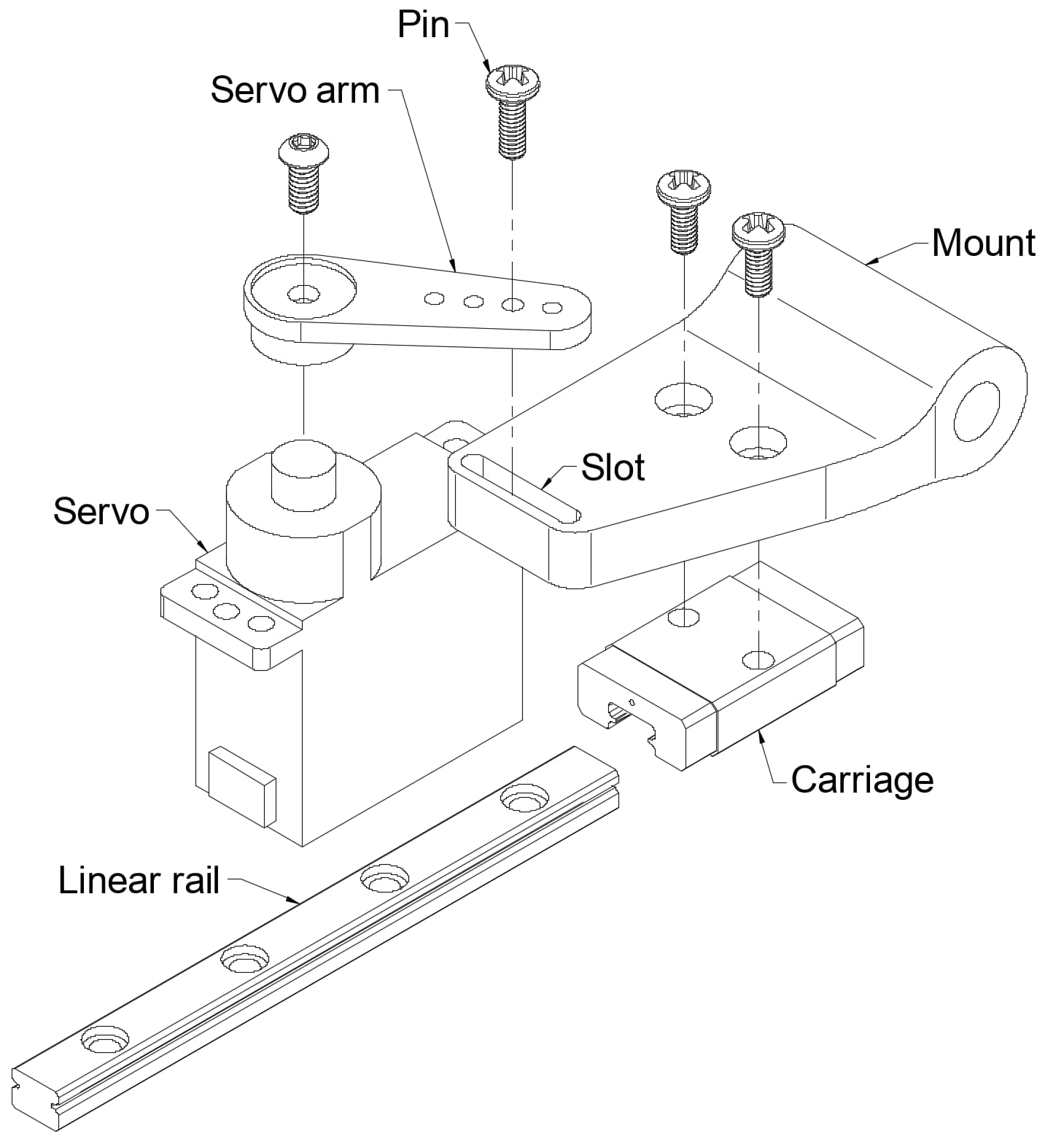

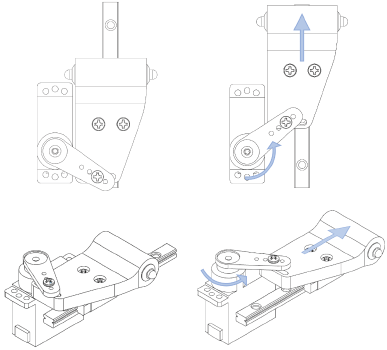

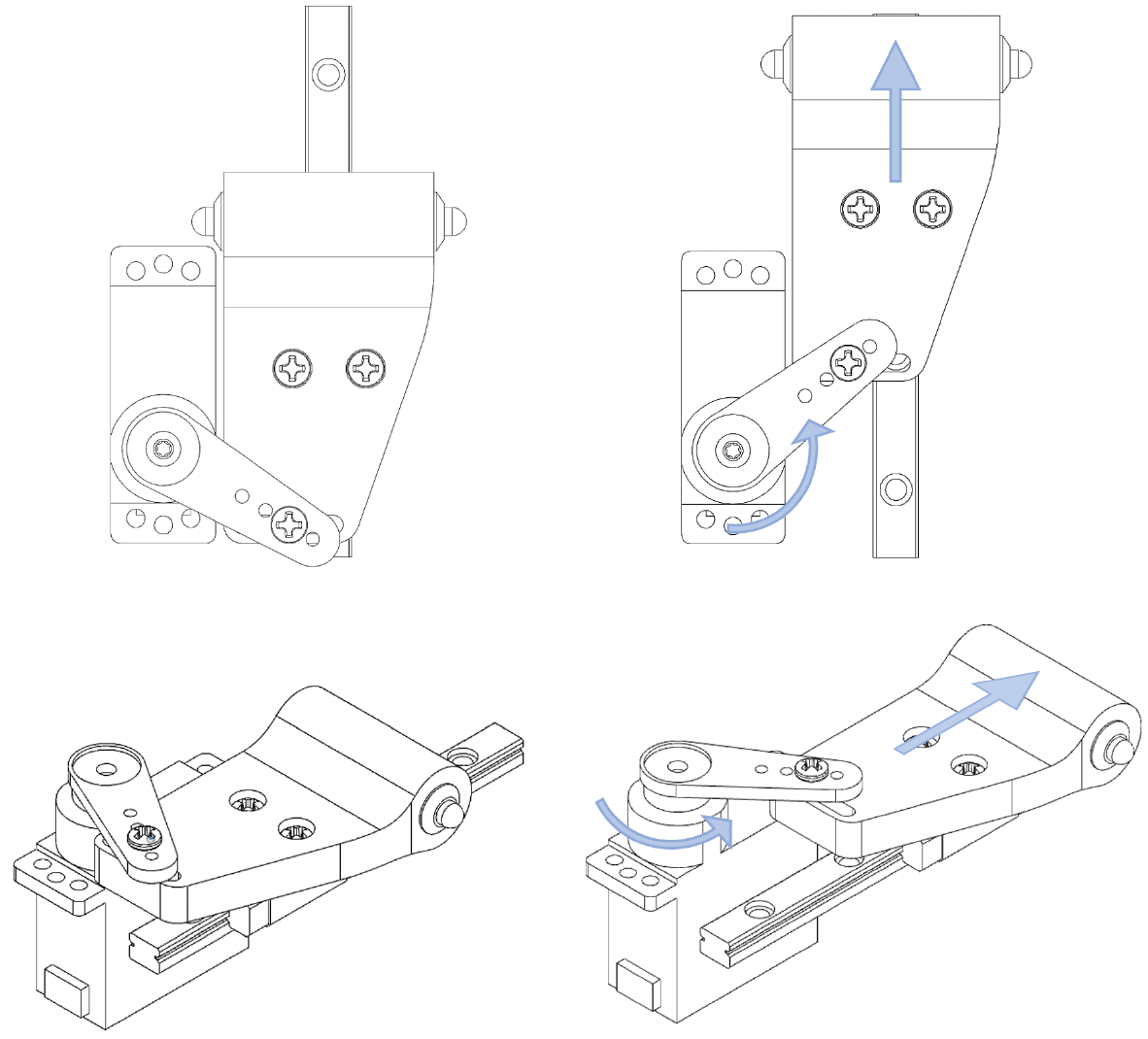

The servo arm’s rotation is translated into linear motion using a pin and slot mechanism

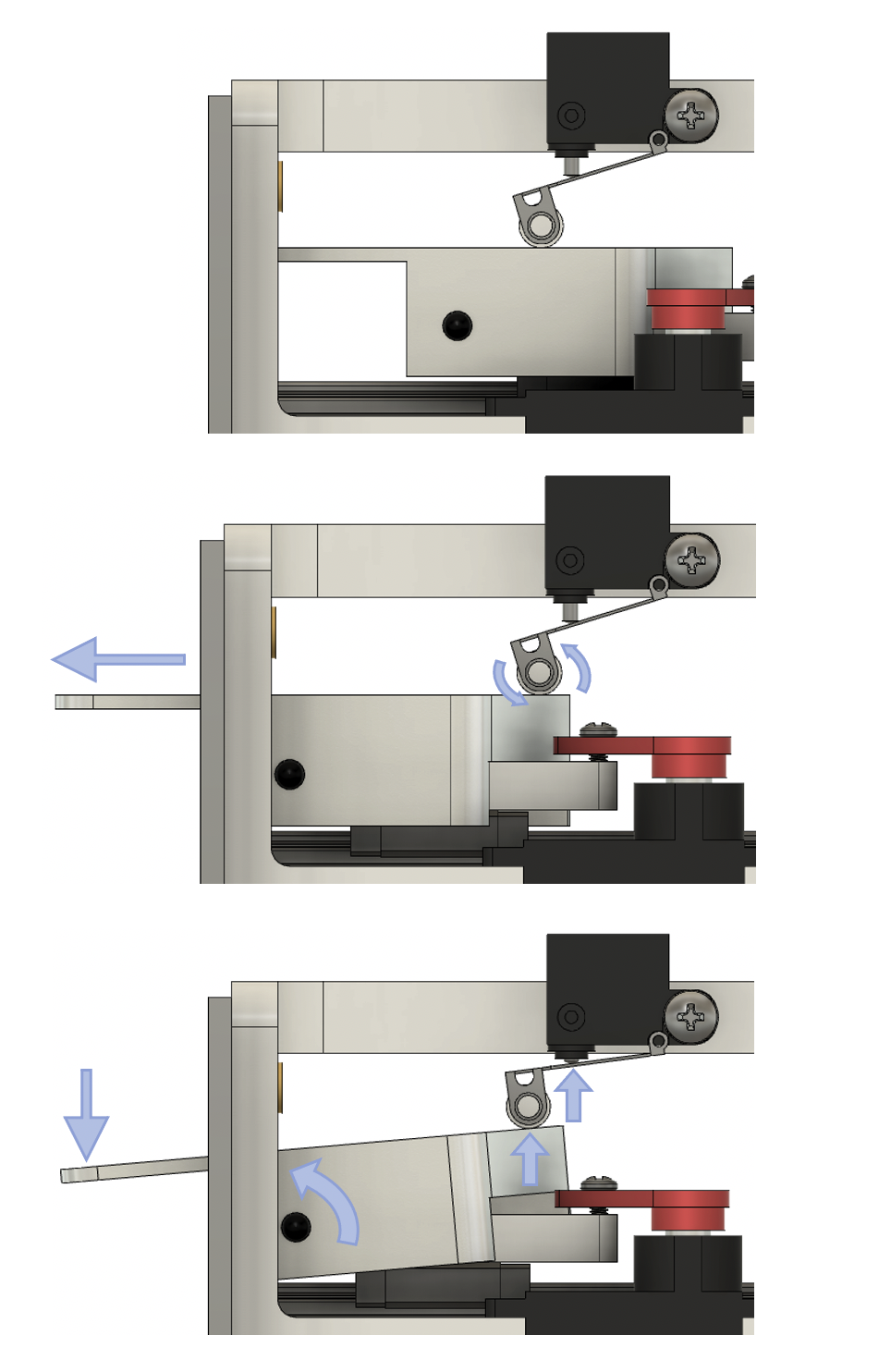

The stage begins retracted. The limit switch arm rolls along the lever surface during extension. Pressing down on the lever front, raises the lever back and actuates the limit switch.
