Design

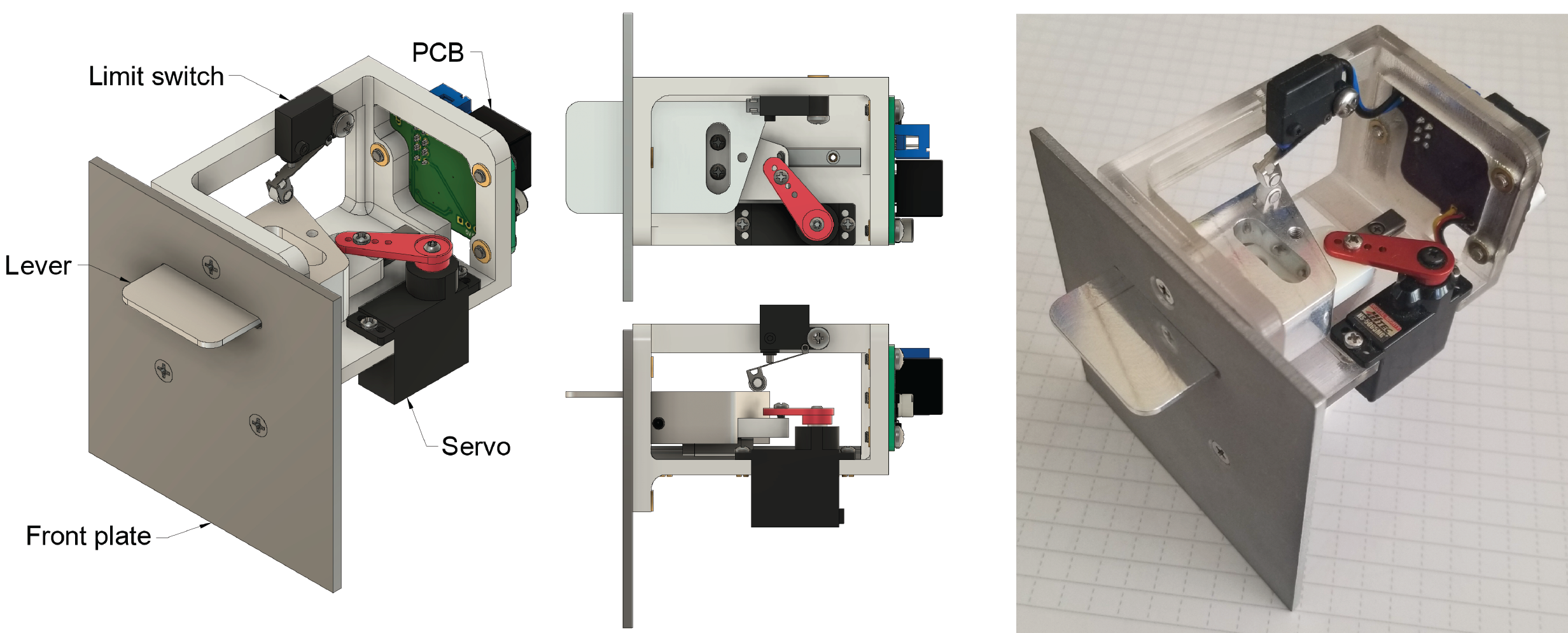

Exploded linear motion components


Lever secures to the mount with spring plungers


The servo arm’s rotation is translated into linear motion using a pin and slot mechanism


The stage begins retracted. The limit switch arm rolls along the lever surface during extension. Pressing down on the lever front, raises the lever back and actuates the limit switch.


Demo
